Table detection with SCIPY_PROJ method#
This is the default method for table detection.
The algorithm in behind this method can be approximately described as follows:
We start from a grayscale pre-processed image from
dawsonia.image_preproc.Preprocessor.preprocess()which undergoes the following:colors transformed to grayscale
background noise removed
corrective rotation applied (optional)
text removed, grid lines filtered out and thickened

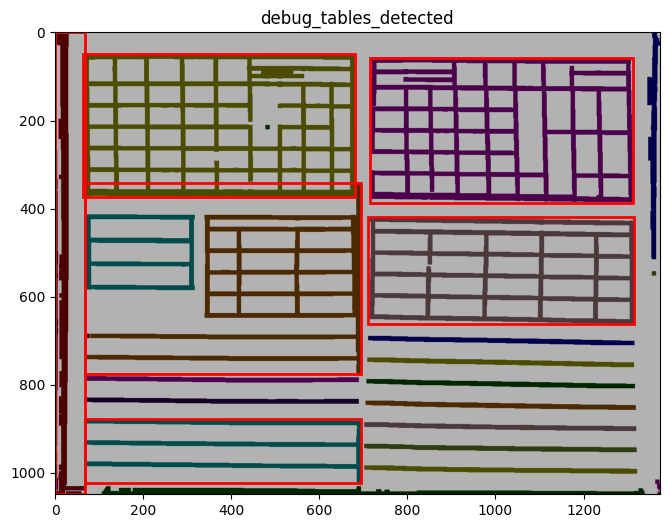

Distinct tables are identified using
scipy.ndimage.label()which assigns a label to a group of connected lines. Seedawsonia.table_detect.scipy_proj.table_detect_scipy_proj()for the implementation.The function

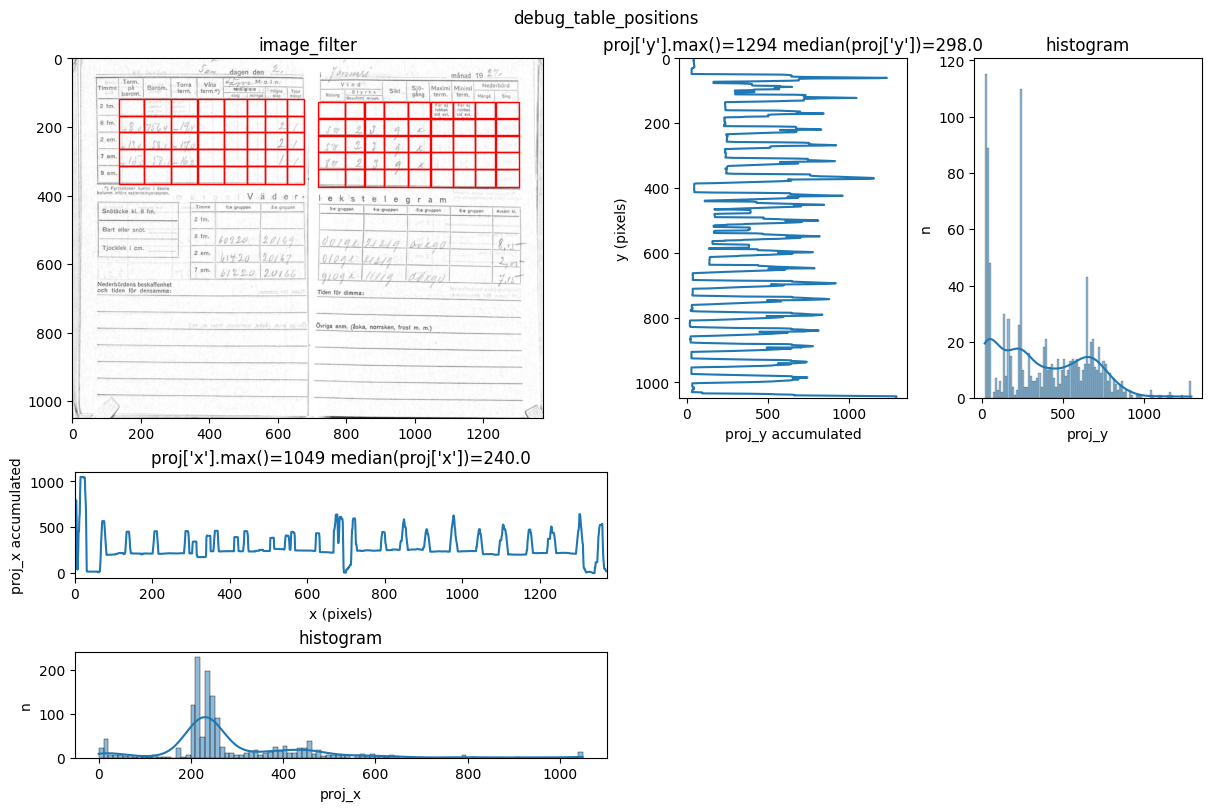

dawsonia.table_detect.scipy_proj.projections_of_label_tables()applies projection along horizontal and vertical directions.For different values of a factor called
sensibility, the functiondawsonia.table_detect.scipy_proj.get_table_structure()identifies peaks to get x and y coordinates for every row and column.Row heights and column widths are calculated using
dawsonia.table_detect.scipy_proj.get_position().Table cells are sorted in left-to-right, top-to-bottom order using
dawsonia.table_detect.scipy_proj.sort_insertion().Leading row and columns are removed (optional)
If table structure matches as expected from the table formats file, then the result is appended to two lists.
%matplotlib inline
We start by setting the environment variable in Bash,
export DAWSONIA_DEBUG_TABLE_DETECT=1
or in the Python console:
import os
os.environ["DAWSONIA_DEBUG_TABLE_DETECT"] = "1"
Now, you need some data to get started. The HTR model weights and data file strucuture are stored in another git repository.
Note
You may notice that that the example journal files used in this page are missing from the git repository. These are not released openly as of now, but it could be available in the future. Please contact us if you are interested.
!git clone https://git.smhi.se/ai-for-obs/data.git
fatal: destination path 'data' already exists and is not an empty directory.
Input data and table formats configuration#
The data repository contains a Zarr directory (we support both PDFs and Zarr files of all formats) with scans of 5 pages each from two “books” of the weather station Bjuröklubb.
%ls -1 data/raw_zarr/bjuröklubb_example/
bjuröklubb_1927.zarr/
bjuröklubb_1930.zarr/
Before we start we need to at least create a table formats configuration file. We do that by manually viewing the files. Visually we know that there are:
5 tables in each page
each have a distinct number of rows and columns
2 tables that contains numeric values that are of interest to us
the column and row names which are static values
year 1927 and year 1930 has different table structures
The name of the file is important. Notice that the stem of the configuration file is the same as the parent directory which holds the books, which is bjuröklubb_example.
%mkdir -p table_formats
%%file table_formats/bjuröklubb_example.toml
# NOTE: that the file name matches the directory containing the files.
[default]
version = 0
# Default values, but wrote explicitly here. See PreprocConfig class
[default.preproc]
table_modif = true
corr_rotate = true
row_idx_unit = "HOURS"
idx_tables_size_verify = [0, 1]
[1927]
version = 1
[version.0]
columns = [
[
"term_på_baro",
"barom",
"torra_term",
"våta_term",
"moln_slag_lägre",
"moln_mängd_lägre",
"moln_slag_medel",
"moln_slag_högre"
],
[
"moln_het_sol_dimma_nederbörd_total",
"vind_riktning",
"vind_beaufort",
"vind_m_sek",
"sikt",
"sjögang",
"maximi_term",
"minimi_term",
"nederbörd_mängd",
"nederbörd_slag"
]
]
name_idx = "tid"
rows = [2, 8, 14, 19, 21]
tables = [
[5, 8],
[5, 10],
[3, 1],
[4, 2],
[4, 5]
]
[version.1]
columns = [
[
"term_på_baro",
"barom",
"torra_term",
"våta_term",
"moln_slag_lägre",
"moln_mängd_lägre",
"moln_slag_högre",
"moln_mängd_total"
],
[
"vind_riktning",
"vind_beaufort",
"vind_m_sek",
"sikt",
"sjögang",
"maximi_term",
"minimi_term",
"nederbörd_mängd",
"nederbörd_slag"
]
]
rows = [2, 8, 14, 19, 21]
tables = [
[5, 8],
[5, 9],
[3, 1],
[4, 2],
[4, 5]
]
Overwriting table_formats/bjuröklubb_example.toml
Demo: Table detection#
Now that we have all the prerequisites read, let’s execute the command:
DAWSONIA_DEBUG_TABLE_DETECT=1 dawsonia label --first-page 4 --last-page 4 --no-interactive data/raw_zarr/bjuröklubb_example/bjuröklubb_1927.zarr
or its Python API equivalent:
from dawsonia import label
label.command("data/raw_zarr/bjuröklubb_example/bjuröklubb_1927.zarr", 4, 4, interactive=False)
INFO 2024-05-20 12:17:03,235 - dawsonia.io._zarr - INFO - table_format = TableFormat(name_idx='tid', columns=[['term_på_baro', 'barom', 'torra_term', 'våta_term', 'moln_slag_lägre', 'moln_mängd_lägre', 'moln_slag_högre', 'moln_mängd_total'], ['vind_riktning', 'vind_beaufort', 'vind_m_sek', 'sikt', 'sjögang', 'maximi_term', 'minimi_term', 'nederbörd_mängd', 'nederbörd_slag']], rows=(datetime.time(2, 0), datetime.time(8, 0), datetime.time(14, 0), datetime.time(19, 0), datetime.time(21, 0)), tables=[[5, 8], [5, 9], [3, 1], [4, 2], [4, 5]], preproc=PreprocConfig(table_modif=True, corr_rotate=True, row_idx_unit=<TimeUnits.HOURS: 1>, idx_tables_size_verify=[0, 1]), transforms=None, version='1', station='bjuröklubb_example')
INFO 2024-05-20 12:17:03,257 - dawsonia.io._zarr - INFO - Setting first_page = 4
INFO 2024-05-20 12:17:03,263 - dawsonia.io._zarr - INFO - Setting first_page = 4
INFO 2024-05-20 12:17:09,201 - dawsonia.image_preproc - INFO - Expected size_tables = [[5, 8], [5, 9], [3, 1], [4, 2], [4, 5]]. Detected nb_labels_pass = 6
INFO 2024-05-20 12:17:09,211 - dawsonia.image_preproc - INFO - with sensibility = 0.9: l_size = [[3, 6], [2, 6], [5, 5]]
INFO 2024-05-20 12:17:09,220 - dawsonia.image_preproc - INFO - with sensibility = 0.7: l_size = [[4, 8], [2, 9], [5, 5]]
INFO 2024-05-20 12:17:09,228 - dawsonia.image_preproc - INFO - with sensibility = 0.6: l_size = [[4, 8], [5, 9], [5, 5]]
INFO 2024-05-20 12:17:09,233 - dawsonia.image_preproc - INFO - saving table 1
INFO 2024-05-20 12:17:09,242 - dawsonia.image_preproc - INFO - with sensibility = 0.55: l_size = [[4, 8], [5, 9], [7, 3], [5, 5]]
INFO 2024-05-20 12:17:09,252 - dawsonia.image_preproc - INFO - with sensibility = 0.5: l_size = [[4, 8], [5, 9], [7, 3], [5, 5]]
INFO 2024-05-20 12:17:09,260 - dawsonia.image_preproc - INFO - with sensibility = 0.47: l_size = [[5, 8], [5, 9], [7, 3], [5, 5]]
INFO 2024-05-20 12:17:09,265 - dawsonia.image_preproc - INFO - saving table 0
INFO 2024-05-20 12:17:09,270 - dawsonia.image_preproc - INFO - 🌞 final size of tables: [[5, 8], [5, 9], [], [], []]
INFO 2024-05-20 12:17:12,108 - dawsonia.label - INFO - Table 2 not detected
INFO 2024-05-20 12:17:12,113 - dawsonia.label - INFO - Table 3 not detected
INFO 2024-05-20 12:17:12,118 - dawsonia.label - INFO - Table 4 not detected
