Digitization

Once we are sure that all or some of the tables can be detected, we are ready to execute the whole digitization pipeline. The command dawsonia digitize processes a PDF / Zarr file in dawsonia.digitize.digitize_book() as follows:

• Read table formats file

• Create a dawsonia.io.Book instance using dawsonia.io.read_book()

• For each page, in dawsonia.digitize.digitize_page_and_write_output() using parallel processes,

  • load the image

  • detect tables

  • for each table, iterate over table cells within digitize_table_with_model()

    • infer text from table cell and save it to a intermediate pandas.Dataframe

  • save the Dataframe to the filesystem as a parquet / markdown file along with other extra metadata such as:

    • dawsonia.digitize.Statistics

    • dawsonia.digitize.Page

    • dawsonia.digitize.TableMetadata

Note

Pre-trained models for HTR are available in https://git.smhi.se/ai-for-obs/data. For example data/models/dawsonia/2024-03-29 is one such model

Demo: digitization

Pandas 3.0 deprecation warning

Due to a change in API in upcoming Pandas 3.0, some deprecation warnings are emitted. These will have to be fixed in the future, but as long we use Pandas 2.x it should be fine. So we suppress it below.

import warnings
warnings.simplefilter("ignore", category=FutureWarning, lineno=0, append=False)

Now we can digitize using the data repository and table_formats directory that we have prepared in the previous notebooks. We could either run the command:

dawsonia digitize \
    -f 3 -l 7 \
    --model-path data/models/dawsonia/2024-03-29 \
    --output-path digitized \
    --table-fmt-dir table_formats \
    --verbose \
    data/raw_zarr/bjuröklubb_example/bjuröklubb_1927.zarr 1927-01-01 1927-12-31

from dawsonia.digitize import digitize_book
from pathlib import Path

cwd = Path.cwd()

digitize_book(
    cwd / "data/raw_zarr/bjuröklubb_example/bjuröklubb_1927.zarr",
    "1927-01-01", "1927-12-31",
    first_page=3, last_page=7,
    model_path=cwd / "data/models/dawsonia/2024-03-29",
    output_path=cwd / "digitized",
    table_fmt_dir=cwd / "table_formats",
    verbose=True,
)

INFO     2024-06-05 12:56:23,082 - dawsonia.io._zarr - INFO - table_format = TableFormat(name_idx='tid',
         columns=[['term_på_baro', 'barom', 'torra_term', 'våta_term', 'moln_slag_lägre', 'moln_mängd_lägre',
         'moln_slag_högre', 'moln_mängd_total'], ['vind_riktning', 'vind_beaufort', 'vind_m_sek', 'sikt',
         'sjögang', 'maximi_term', 'minimi_term', 'nederbörd_mängd', 'nederbörd_slag']], rows=(datetime.time(2, 0),
         datetime.time(8, 0), datetime.time(14, 0), datetime.time(19, 0), datetime.time(21, 0)), tables=[[5, 8],
         [5, 9], [3, 1], [4, 2], [4, 5]], preproc=PreprocConfig(table_modif=True, corr_rotate=True,
         row_idx_unit=<TimeUnits.HOURS: 1>, method=<PreprocMethods.SCIPY_PROJ: 1>, idx_tables_size_verify=[0, 1]),
         transforms=None, version='1', station='bjuröklubb_example')

INFO     2024-06-05 12:56:23,104 - dawsonia.io._zarr - INFO - Setting first_page = 3

INFO     2024-06-05 12:56:23,109 - dawsonia.digitize - INFO - Digitizing Book(file=<zarr.hierarchy.Group '/'
         read-only>, page_middle=None, table_format=TableFormat(name_idx='tid', columns=[['term_på_baro', 'barom',
         'torra_term', 'våta_term', 'moln_slag_lägre', 'moln_mängd_lägre', 'moln_slag_högre', 'moln_mängd_total'],
         ['vind_riktning', 'vind_beaufort', 'vind_m_sek', 'sikt', 'sjögang', 'maximi_term', 'minimi_term',
         'nederbörd_mängd', 'nederbörd_slag']], rows=(datetime.time(2, 0), datetime.time(8, 0), datetime.time(14,
         0), datetime.time(19, 0), datetime.time(21, 0)), tables=[[5, 8], [5, 9], [3, 1], [4, 2], [4, 5]],
         preproc=PreprocConfig(table_modif=True, corr_rotate=True, row_idx_unit=<TimeUnits.HOURS: 1>,
         method=<PreprocMethods.SCIPY_PROJ: 1>, idx_tables_size_verify=[0, 1]), transforms=None, version='1',
         station='bjuröklubb_example'), size_cell=[1.0, 1.0, 1.0, 1.0], preprocessor=Preprocessor())

INFO     2024-06-05 12:56:26,589 - dawsonia.digitize - INFO - Writing
         /home/a002487/Sources/ai-for-obs/dawsonia/docs/source/getting_started/digitized/bjuröklubb_example/bjurökl
         ubb_1927/1927-01-01

INFO     2024-06-05 12:56:26,702 - dawsonia.digitize - INFO - Writing
         /home/a002487/Sources/ai-for-obs/dawsonia/docs/source/getting_started/digitized/bjuröklubb_example/bjurökl
         ubb_1927/1927-01-02

INFO     2024-06-05 12:56:26,713 - dawsonia.digitize - INFO - Writing
         /home/a002487/Sources/ai-for-obs/dawsonia/docs/source/getting_started/digitized/bjuröklubb_example/bjurökl
         ubb_1927/1927-01-03

INFO     2024-06-05 12:56:26,720 - dawsonia.digitize - INFO - Writing
         /home/a002487/Sources/ai-for-obs/dawsonia/docs/source/getting_started/digitized/bjuröklubb_example/bjurökl
         ubb_1927/1927-01-04

INFO     2024-06-05 12:57:12,298 - dawsonia.digitize - INFO - page_number = 6 date_str = '1927-01-04'

INFO     2024-06-05 12:57:12,303 - dawsonia.digitize - INFO - output_stats = Statistics(tables_detected=2,
         predictions_total=85, predictions_above_thresh=80, predictions_empty_value=50, unset_values=0)

INFO     2024-06-05 12:57:12,308 - dawsonia.digitize - INFO - page_number = 5 date_str = '1927-01-03'

INFO     2024-06-05 12:57:12,313 - dawsonia.digitize - INFO - output_stats = Statistics(tables_detected=2,
         predictions_total=85, predictions_above_thresh=85, predictions_empty_value=48, unset_values=0)

INFO     2024-06-05 12:57:12,318 - dawsonia.digitize - INFO - page_number = 3 date_str = '1927-01-01'

INFO     2024-06-05 12:57:12,323 - dawsonia.digitize - INFO - output_stats = Statistics(tables_detected=2,
         predictions_total=85, predictions_above_thresh=80, predictions_empty_value=50, unset_values=0)

INFO     2024-06-05 12:57:12,329 - dawsonia.digitize - INFO - page_number = 4 date_str = '1927-01-02'

INFO     2024-06-05 12:57:12,334 - dawsonia.digitize - INFO - output_stats = Statistics(tables_detected=2,
         predictions_total=85, predictions_above_thresh=78, predictions_empty_value=55, unset_values=0)

Tip

Python: A script can such as scripts/digitize.py or scripts/digitize_api.py may be used.

CLI: Some of these options are repeatable and are best stored in a cfg file such as cfg/lumi.toml which is present in the dawsonia repository. Once created this file can be supplied to the command line as dawsonia digitize -c cfg/myconfig.toml.

!tail -n 6 ../../../cfg/lumi.toml

[dawsonia.digitize]
first_page = 3
last_page = 100000
verbose = true
model_path = "~/scratch/data/processed/dawsonia_model_2022-12-19"
output_path = "~/scratch/data/processed/digitized_2022-12-19"

Results

As mentioned earlier, for every page a couple of files are generated. Let’s take a look at these.

ls digitized/bjuröklubb_example/bjuröklubb_1927/*

digitized/bjuröklubb_example/bjuröklubb_1927/1927-01-01.parquet
digitized/bjuröklubb_example/bjuröklubb_1927/1927-01-02.parquet
digitized/bjuröklubb_example/bjuröklubb_1927/1927-01-03.parquet
digitized/bjuröklubb_example/bjuröklubb_1927/1927-01-04.parquet

digitized/bjuröklubb_example/bjuröklubb_1927/pages:
1927-01-01.webp  1927-01-02.webp  1927-01-03.webp  1927-01-04.webp

digitized/bjuröklubb_example/bjuröklubb_1927/probablities:
1927-01-01.parquet  1927-01-02.parquet  1927-01-03.parquet  1927-01-04.parquet

digitized/bjuröklubb_example/bjuröklubb_1927/statistics:
1927-01-01.json  1927-01-02.json  1927-01-03.json  1927-01-04.json

digitized/bjuröklubb_example/bjuröklubb_1927/table_meta:
1927-01-01.json  1927-01-02.json  1927-01-03.json  1927-01-04.json

import json
from pandas import read_parquet
from PIL import Image

def read_json(path):
    return json.loads(Path(path).read_text())

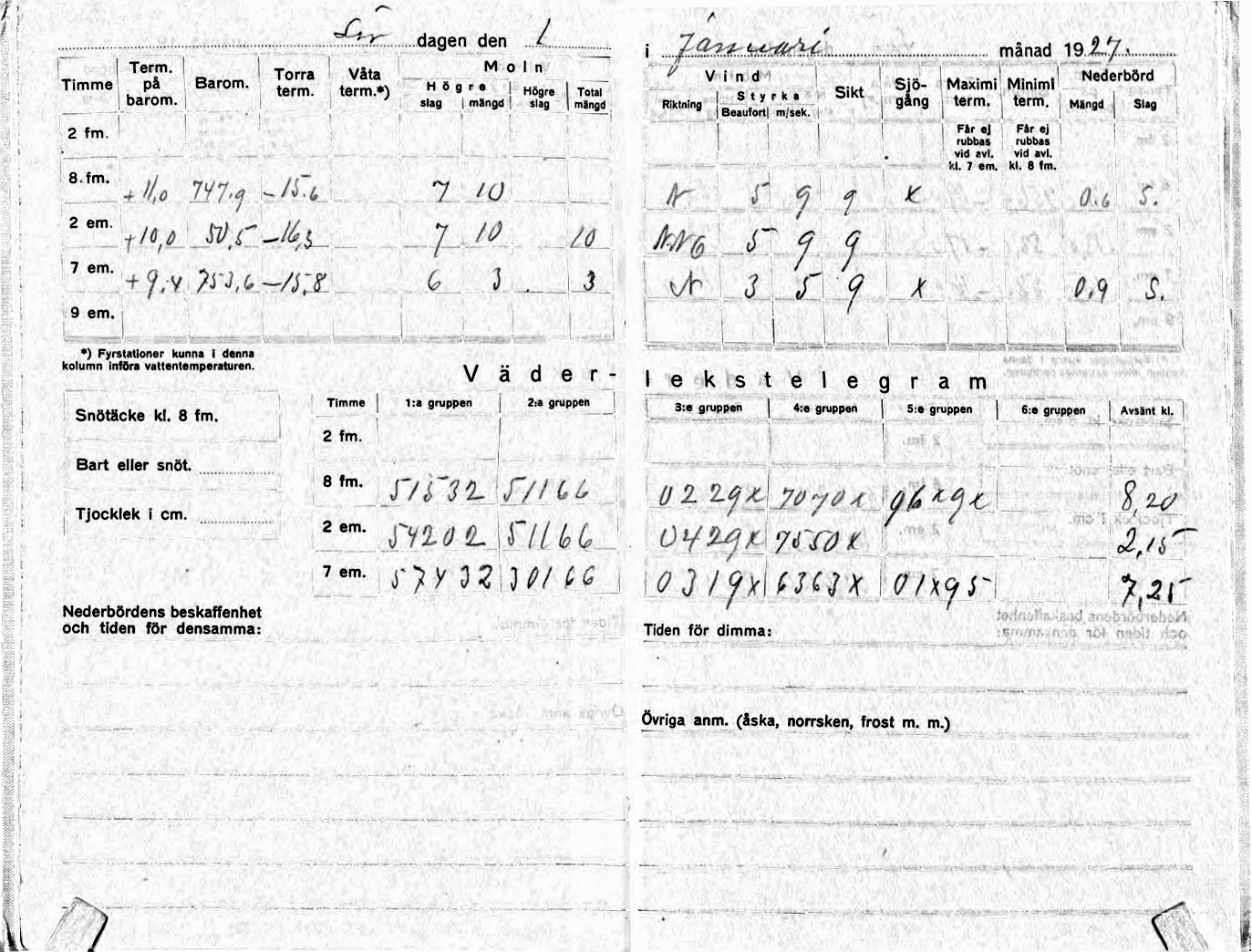

Preprocessed Image

im = Image.open("digitized/bjuröklubb_example/bjuröklubb_1927/pages/1927-01-01.webp")
im

Digitized Text

read_parquet("digitized/bjuröklubb_example/bjuröklubb_1927/1927-01-01.parquet")

	term_på_baro	barom	torra_term	våta_term	moln_slag_lägre	moln_mängd_lägre	moln_slag_högre	moln_mängd_total	vind_riktning	vind_beaufort	vind_m_sek	sikt	sjögang	maximi_term	minimi_term	nederbörd_mängd	nederbörd_slag
tid
02:00:00
08:00:00	+11.0	747.0	-15.6		7	10			10	5	9	9	x			0.6	5.
14:00:00	+10.0	50	-16.8		7	10		10	19.	5	9	9
19:00:00	+9.4	753.	-15.8		6	3		3	15.	3	5	9	x			0.9	5.
21:00:00

Probablities

read_parquet("digitized/bjuröklubb_example/bjuröklubb_1927/probablities/1927-01-01.parquet")

	term_på_baro	barom	torra_term	våta_term	moln_slag_lägre	moln_mängd_lägre	moln_slag_högre	moln_mängd_total	vind_riktning	vind_beaufort	vind_m_sek	sikt	sjögang	maximi_term	minimi_term	nederbörd_mängd	nederbörd_slag
tid
02:00:00	0.999486	0.999484	0.999494	0.999471	0.999463	0.999468	0.999445	0.999480	0.999513	0.999450	0.999487	0.999486	0.999495	0.922424	0.938132	0.999491	0.999493
08:00:00	0.986166	0.873290	0.787986	0.999477	0.998900	0.998792	0.999478	0.999507	0.997447	0.999035	0.999489	0.999445	0.999150	0.999483	0.999475	0.641884	0.994220
14:00:00	0.994033	0.989950	0.695166	0.999494	0.999613	0.999524	0.999486	0.998935	0.128251	0.999284	0.999475	0.975948	0.999498	0.999462	0.999462	0.999461	0.999475
19:00:00	0.990853	0.807118	0.944315	0.999499	0.903842	0.999241	0.999482	0.988703	0.539789	0.999513	0.999260	0.999186	0.999362	0.999443	0.999478	0.998484	0.991648
21:00:00	0.999528	0.999487	0.999502	0.999514	0.999522	0.999486	0.999497	0.999517	0.999523	0.999502	0.999559	0.999493	0.999530	0.999529	0.999447	0.999522	0.999465

Statistics

read_json("digitized/bjuröklubb_example/bjuröklubb_1927/statistics/1927-01-01.json")

{'tables_detected': 2,
 'predictions_total': 85,
 'predictions_above_thresh': 80,
 'predictions_empty_value': 50,
 'unset_values': 0}

Table Meta

table_meta = read_json("digitized/bjuröklubb_example/bjuröklubb_1927/table_meta/1927-01-01.json")
table_meta

{'table_sizes': [[5, 8], [5, 9], [], [], []],
 'table_positions': [[[[146, 168, 50, 73],
    [146, 245, 50, 81],
    [146, 324, 50, 77],
    [146, 400, 50, 76],
    [146, 472, 50, 68],
    [146, 533, 50, 53],
    [146, 591, 50, 63],
    [146, 646, 50, 47]],
   [[196, 168, 49, 73],
    [196, 245, 49, 81],
    [196, 324, 49, 77],
    [196, 400, 49, 76],
    [196, 472, 49, 68],
    [196, 533, 49, 53],
    [196, 591, 49, 63],
    [196, 646, 49, 47]],
   [[245, 168, 50, 73],
    [245, 245, 50, 81],
    [245, 324, 50, 77],
    [245, 400, 50, 76],
    [245, 472, 50, 68],
    [245, 533, 50, 53],
    [245, 591, 50, 63],
    [245, 646, 50, 47]],
   [[295, 168, 49, 73],
    [295, 245, 49, 81],
    [295, 324, 49, 77],
    [295, 400, 49, 76],
    [295, 472, 49, 68],
    [295, 533, 49, 53],
    [295, 591, 49, 63],
    [295, 646, 49, 47]],
   [[345, 168, 52, 73],
    [345, 245, 52, 81],
    [345, 324, 52, 77],
    [345, 400, 52, 76],
    [345, 472, 52, 68],
    [345, 533, 52, 53],
    [345, 591, 52, 63],
    [345, 646, 52, 47]]],
  [[[156, 745, 50, 85],
    [156, 816, 50, 57],
    [156, 872, 50, 55],
    [156, 934, 50, 70],
    [156, 1002, 50, 65],
    [156, 1067, 50, 66],
    [156, 1132, 50, 64],
    [156, 1194, 50, 60],
    [156, 1258, 50, 67]],
   [[206, 745, 49, 85],
    [206, 816, 49, 57],
    [206, 872, 49, 55],
    [206, 934, 49, 70],
    [206, 1002, 49, 65],
    [206, 1067, 49, 66],
    [206, 1132, 49, 64],
    [206, 1194, 49, 60],
    [206, 1258, 49, 67]],
   [[254, 745, 48, 85],
    [254, 816, 48, 57],
    [254, 872, 48, 55],
    [254, 934, 48, 70],
    [254, 1002, 48, 65],
    [254, 1067, 48, 66],
    [254, 1132, 48, 64],
    [254, 1194, 48, 60],
    [254, 1258, 48, 67]],
   [[303, 745, 50, 85],
    [303, 816, 50, 57],
    [303, 872, 50, 55],
    [303, 934, 50, 70],
    [303, 1002, 50, 65],
    [303, 1067, 50, 66],
    [303, 1132, 50, 64],
    [303, 1194, 50, 60],
    [303, 1258, 50, 67]],
   [[354, 745, 51, 85],
    [354, 816, 51, 57],
    [354, 872, 51, 55],
    [354, 934, 51, 70],
    [354, 1002, 51, 65],
    [354, 1067, 51, 66],
    [354, 1132, 51, 64],
    [354, 1194, 51, 60],
    [354, 1258, 51, 67]]]]}
