Table detection with OPENCV_CONTOURS#
Warning
This is an experimental, alternate method for table detection. The method is promising, but it has some rough edges which needs to be fixed before it can be used.
The algorithm behind this method can be approximately described as follows:

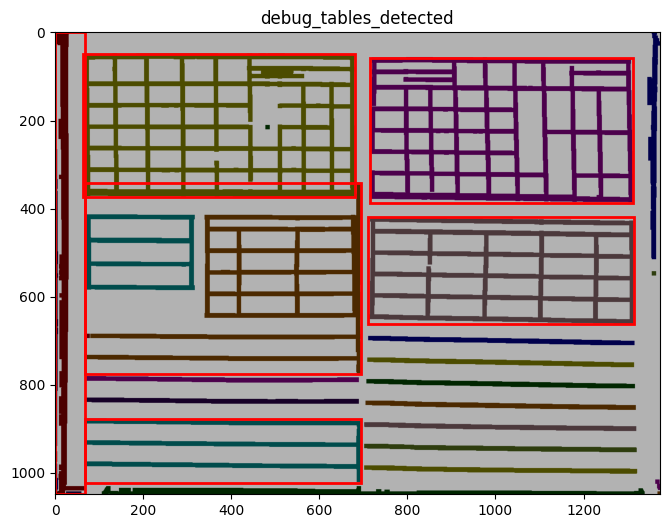

We start from a grayscale pre-processed image with textremoved and tables identified using
scipy.ndimage.label()as in Table detection with SCIPY_PROJ method.The function
dawsonia.table_detect.opencv_contours.get_table_structure()callscv2.findContoursto identify contours. The bounding boxes (bbox) are saved instead of the exact curvilinear contour. Unusual bboxes (too small, too big, strange aspect ratios) are weeded out,Clustering algorithm
dawsonia.table_detect.opencv_contours.cluster_axis()identifies columns and rowsColumn clusters and row clusters are intersected to form a 3D array, with shape
(nb_rows, nb_columns, 4)indawsonia.table_detect.opencv_contours.create_bbox_array().Once again unusual bboxes (width or height deviates too much from the median in the column / row) are removed using
dawsonia.table_detect.opencv_contours.set_nan_to_odd_bboxes().Missing bboxes are discovered using a cubic curve fit in
dawsonia.table_detect.opencv_contours.fix_missing_bboxes().
To activate this the table configuration file need to be altered. But first, we start by setting our environment
%matplotlib inline
%load_ext autoreload
autoreload 2
import os
os.environ["DAWSONIA_DEBUG_TABLE_DETECT"] = "1"
Now we write a new table formats file. Notice the new key method under [default.preproc].
mkdir -p table_formats
%%file table_formats/bjuröklubb_example.toml
[default]
version = 0
# Default values, but wrote explicitly here. See PreprocConfig class
[default.preproc]
table_modif = true
corr_rotate = true
## NOTE: Here we alter the method
method = "OPENCV_CONTOURS"
row_idx_unit = "HOURS"
idx_tables_size_verify = [0, 1]
[1927]
version = 1
[version.0]
columns = [
[
"term_på_baro",
"barom",
"torra_term",
"våta_term",
"moln_slag_lägre",
"moln_mängd_lägre",
"moln_slag_medel",
"moln_slag_högre"
],
[
"moln_het_sol_dimma_nederbörd_total",
"vind_riktning",
"vind_beaufort",
"vind_m_sek",
"sikt",
"sjögang",
"maximi_term",
"minimi_term",
"nederbörd_mängd",
"nederbörd_slag"
]
]
name_idx = "tid"
rows = [2, 8, 14, 19, 21]
tables = [
[5, 8],
[5, 10],
[3, 1],
[4, 2],
[4, 5]
]
[version.1]
columns = [
[
"term_på_baro",
"barom",
"torra_term",
"våta_term",
"moln_slag_lägre",
"moln_mängd_lägre",
"moln_slag_högre",
"moln_mängd_total"
],
[
"vind_riktning",
"vind_beaufort",
"vind_m_sek",
"sikt",
"sjögang",
"maximi_term",
"minimi_term",
"nederbörd_mängd",
"nederbörd_slag"
]
]
rows = [2, 8, 14, 19, 21]
tables = [
[5, 8],
[5, 9],
[3, 1],
[4, 2],
[4, 5]
]
Writing table_formats/bjuröklubb_example.toml
Demo: Table detection#
Now that we have all the prerequisites read, let’s execute the command:
DAWSONIA_DEBUG_TABLE_DETECT=1 dawsonia label --first-page 4 --last-page 4 --no-interactive data/raw_zarr/bjuröklubb_example/bjuröklubb_1927.zarr
or its Python API equivalent:
from dawsonia import label
label.command("data/raw_zarr/bjuröklubb_example/bjuröklubb_1927.zarr", 4, 4, interactive=False)
INFO 2024-06-02 22:02:14,892 - dawsonia.io._zarr - INFO - table_format = TableFormat(name_idx='tid', columns=[['term_på_baro', 'barom', 'torra_term', 'våta_term', 'moln_slag_lägre', 'moln_mängd_lägre', 'moln_slag_högre', 'moln_mängd_total'], ['vind_riktning', 'vind_beaufort', 'vind_m_sek', 'sikt', 'sjögang', 'maximi_term', 'minimi_term', 'nederbörd_mängd', 'nederbörd_slag']], rows=(datetime.time(2, 0), datetime.time(8, 0), datetime.time(14, 0), datetime.time(19, 0), datetime.time(21, 0)), tables=[[5, 8], [5, 9], [3, 1], [4, 2], [4, 5]], preproc=PreprocConfig(table_modif=True, corr_rotate=True, row_idx_unit=<TimeUnits.HOURS: 1>, method=<PreprocMethods.OPENCV_CONTOURS: 2>, idx_tables_size_verify=[0, 1]), transforms=None, version='1', station='bjuröklubb_example')
INFO 2024-06-02 22:02:14,913 - dawsonia.io._zarr - INFO - Setting first_page = 4
INFO 2024-06-02 22:02:14,919 - dawsonia.io._zarr - INFO - Setting first_page = 4

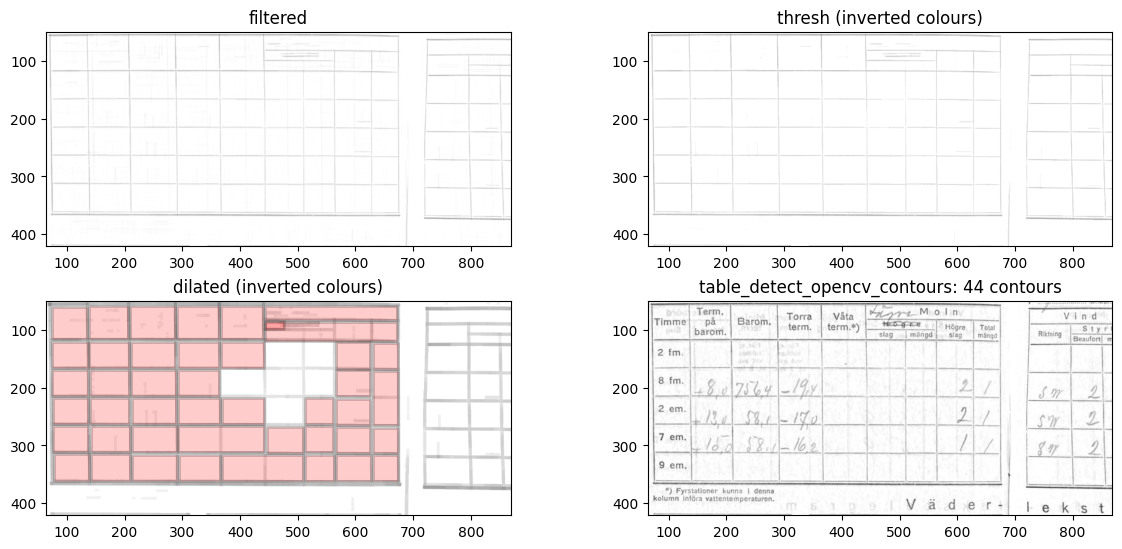

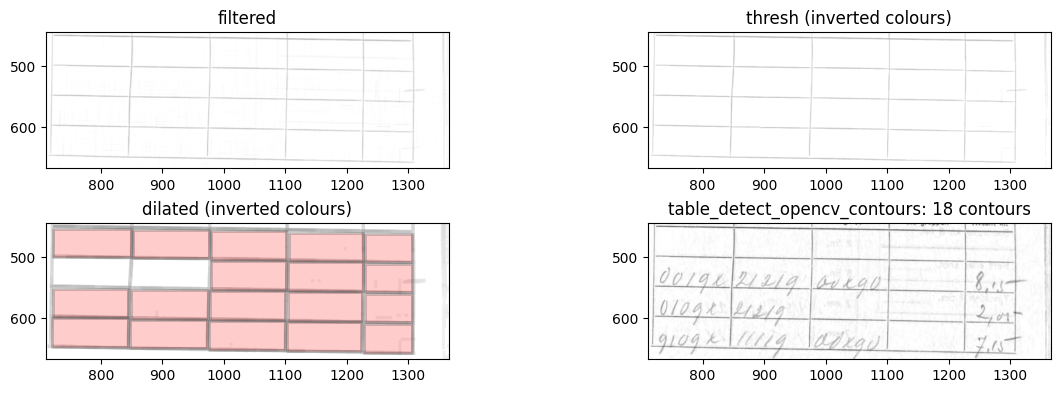

INFO 2024-06-02 22:02:21,643 - dawsonia.table_detect.opencv_contours - INFO - Finding contours for a mask with table_nb_pixels=19366
INFO 2024-06-02 22:02:21,655 - dawsonia.table_detect.opencv_contours - INFO - No bboxes detected!
INFO 2024-06-02 22:02:21,678 - dawsonia.table_detect.opencv_contours - INFO - Finding contours for a mask with table_nb_pixels=75059

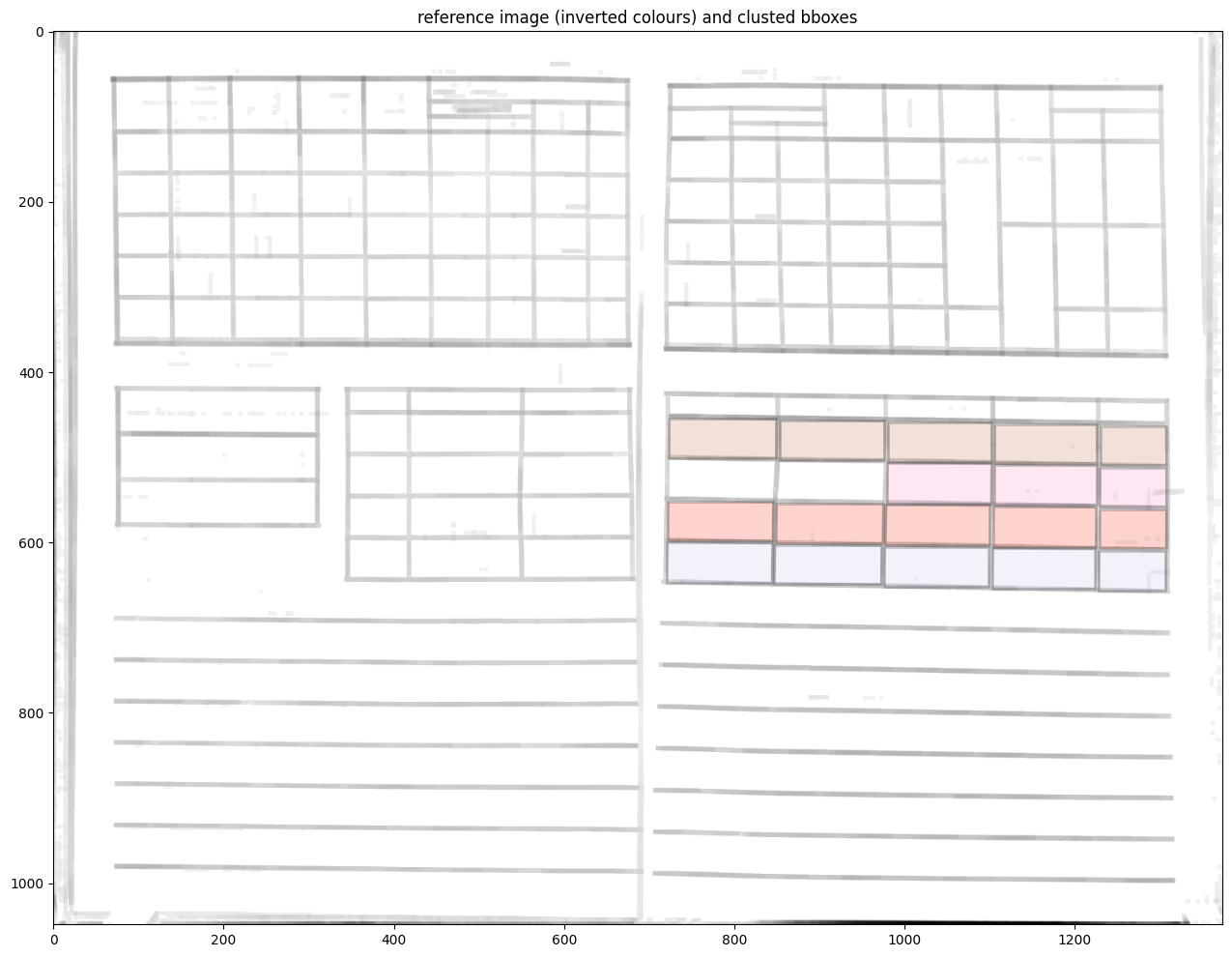

INFO 2024-06-02 22:02:23,325 - dawsonia.table_detect.opencv_contours - INFO - cluster labels = [ 3 1 4 5 9 6 10 2 0 7 8]
INFO 2024-06-02 22:02:24,159 - dawsonia.table_detect.opencv_contours - INFO - cluster labels = [6 0 1 5 7 3 2 4]
/home/a002487/.pyenv/versions/3.9.13/envs/ai-for-obs/lib/python3.9/site-packages/numpy/lib/nanfunctions.py:1217: RuntimeWarning: All-NaN slice encountered
return function_base._ureduce(a, func=_nanmedian, keepdims=keepdims,
/home/a002487/.pyenv/versions/3.9.13/envs/ai-for-obs/lib/python3.9/site-packages/numpy/lib/nanfunctions.py:1217: RuntimeWarning: All-NaN slice encountered
return function_base._ureduce(a, func=_nanmedian, keepdims=keepdims,

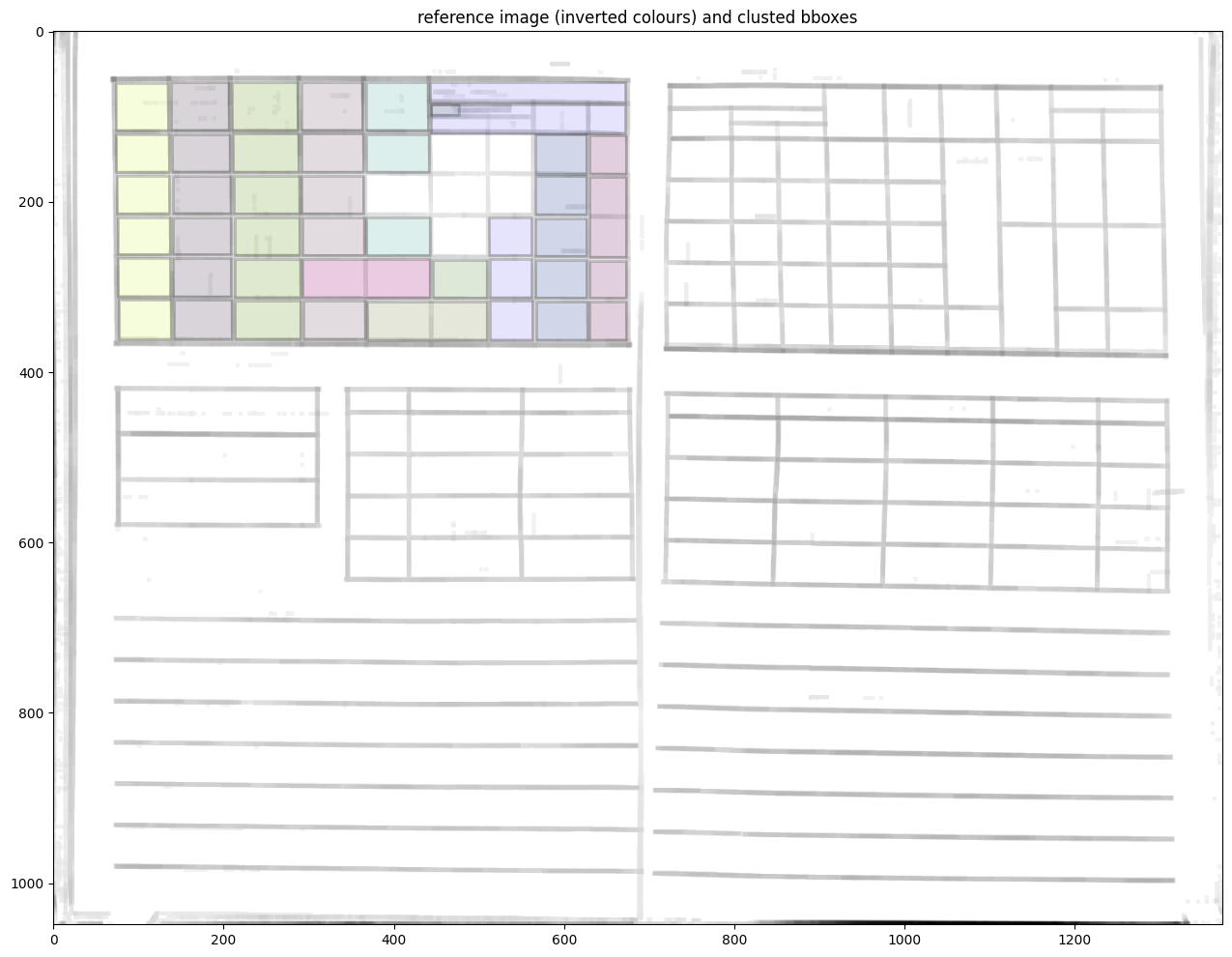

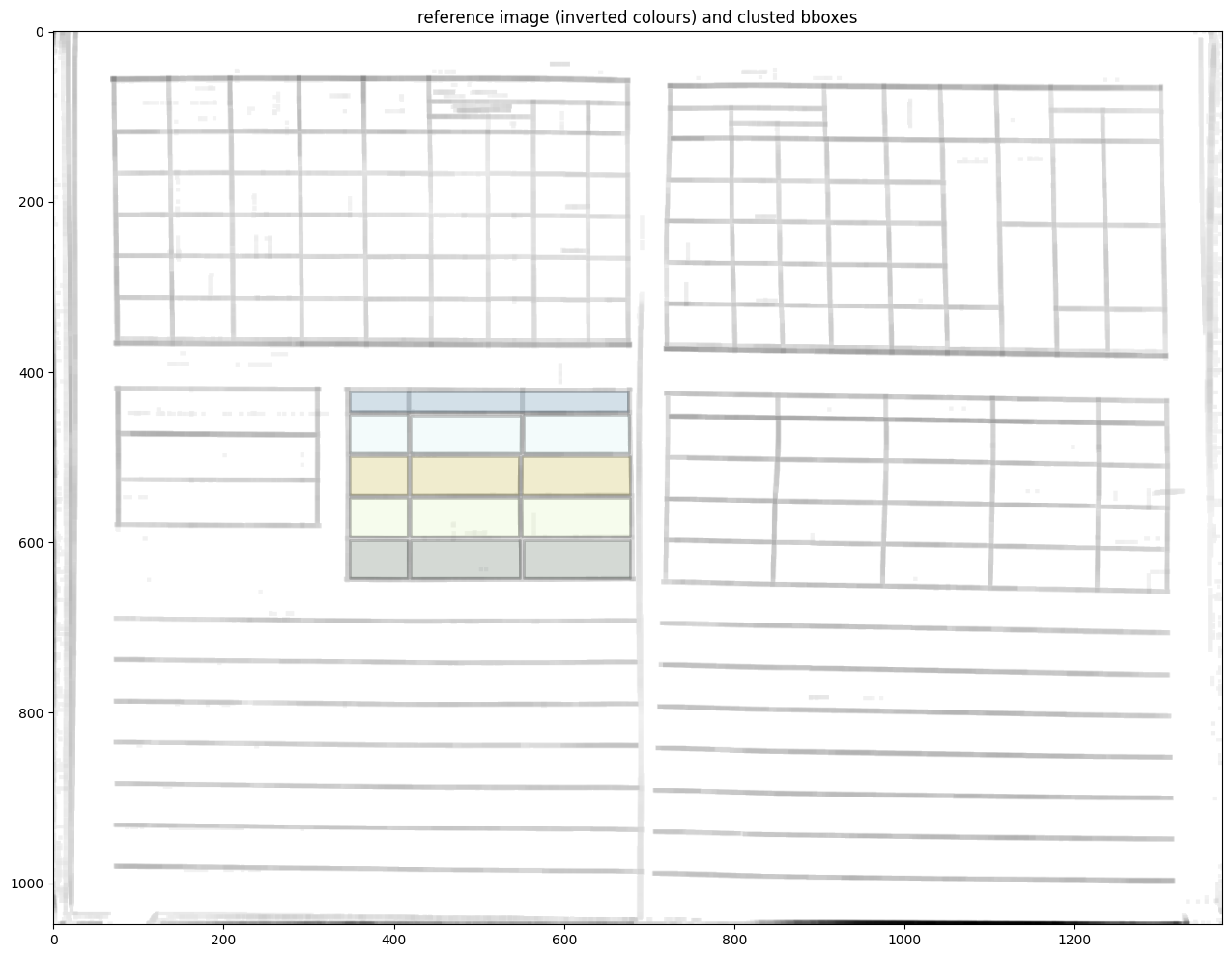

INFO 2024-06-02 22:02:25,039 - dawsonia.table_detect.opencv_contours - INFO - Dumped ('bboxes', 'column_labels', 'column_bboxes_idxs', 'row_labels', 'row_bboxes_idxs', 'original_image') into /home/a002487/Sources/ai-for-obs/dawsonia/docs/source/getting_started/get_table_structure_07ca022c-211b-11 ef-98fa-84c5a6cd0398.joblib. Explore it using get_table_strucutre_interpolation.ipynb

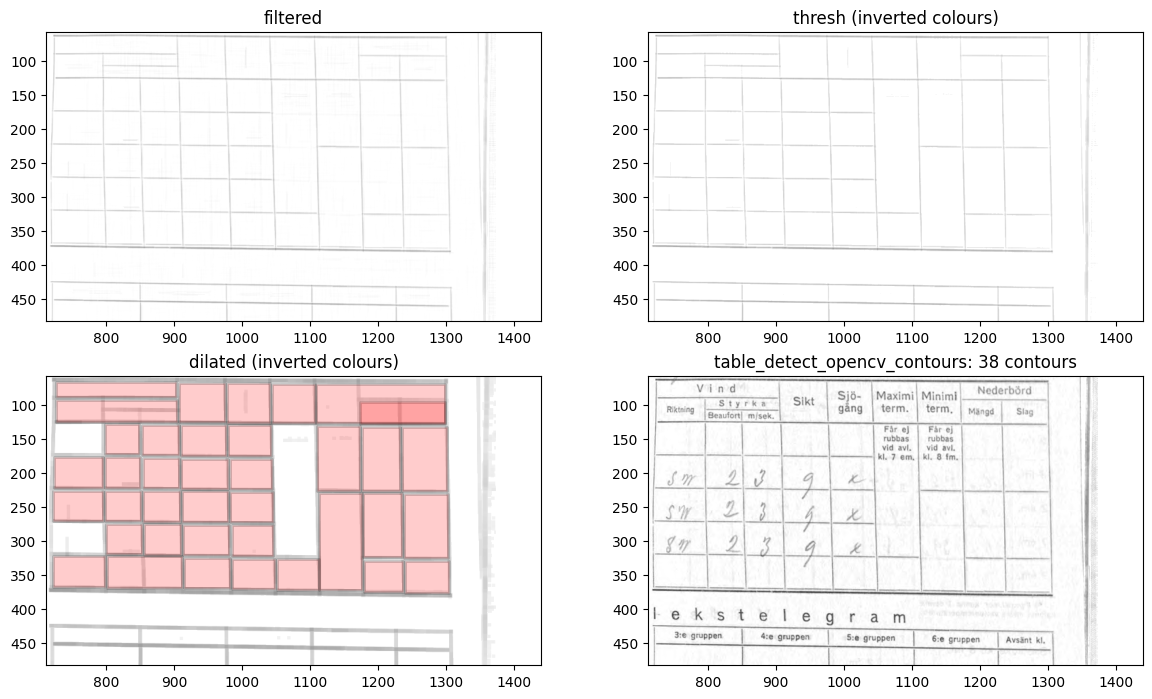

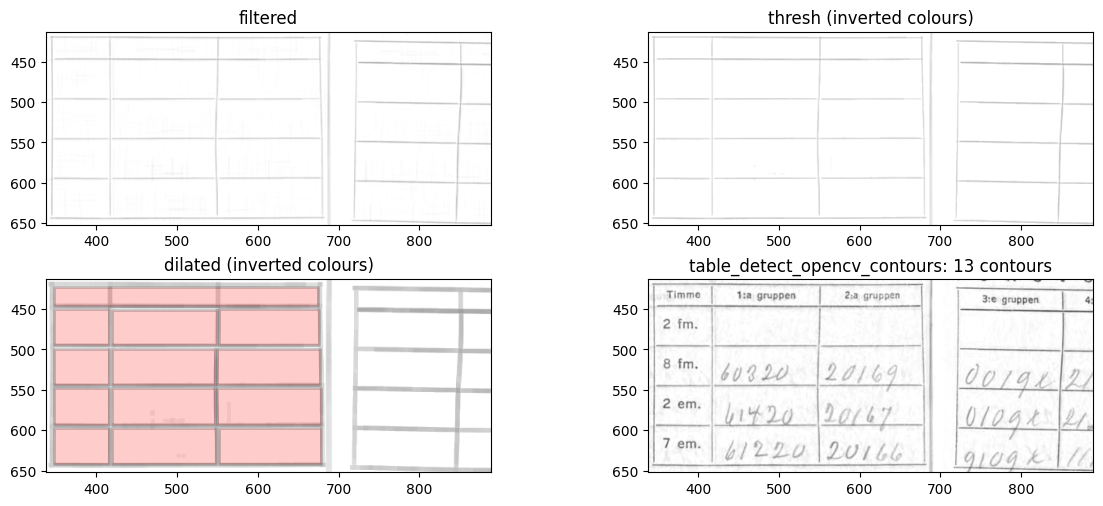

INFO 2024-06-02 22:02:25,055 - dawsonia.table_detect.opencv_contours - INFO - Finding contours for a mask with table_nb_pixels=70550
INFO 2024-06-02 22:02:26,971 - dawsonia.table_detect.opencv_contours - INFO - cluster labels = [ 8 0 10 5 1 2 4 6 3 9 7]
INFO 2024-06-02 22:02:27,894 - dawsonia.table_detect.opencv_contours - INFO - cluster labels = [6 0 5 8 3 4 7 2 1]

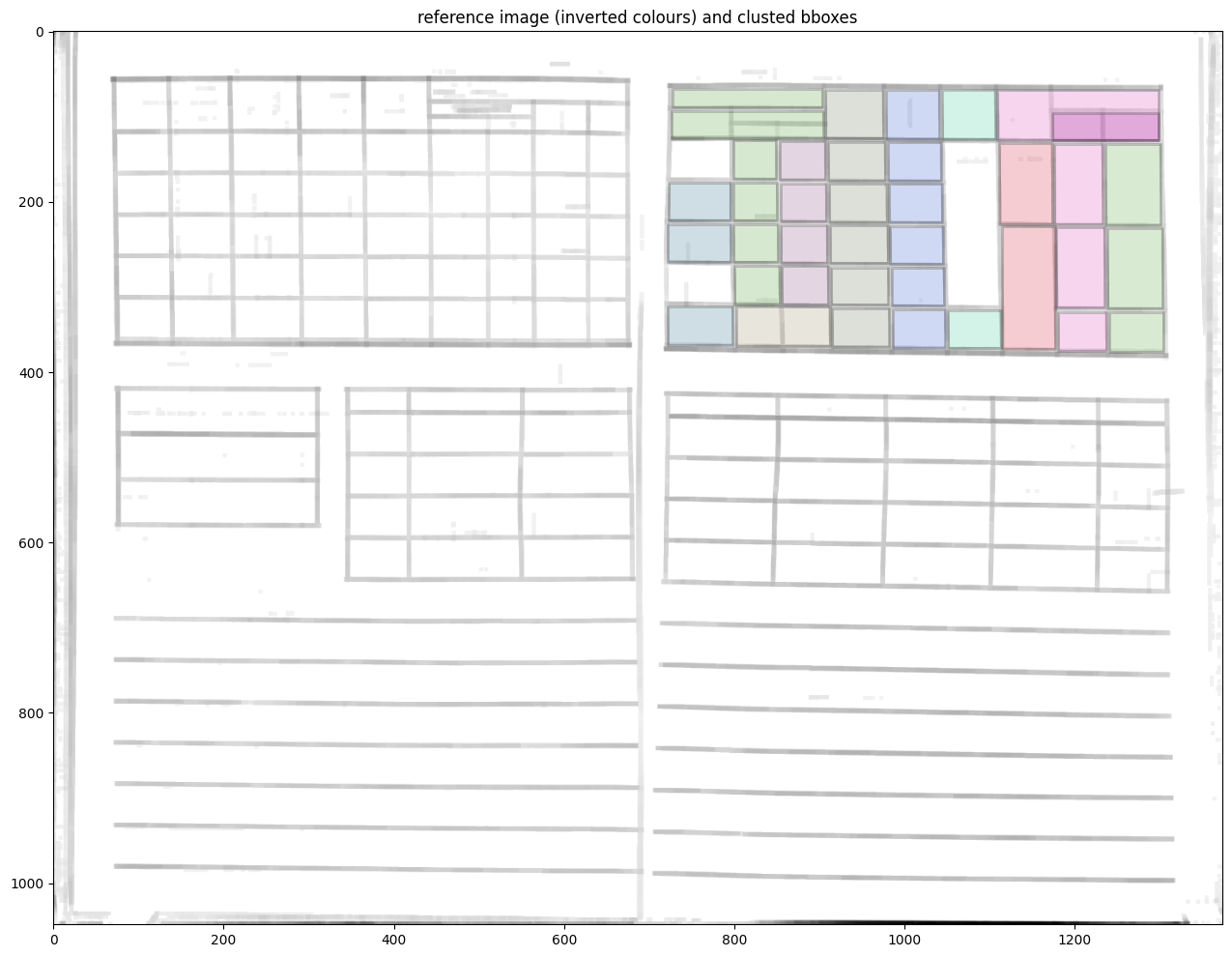

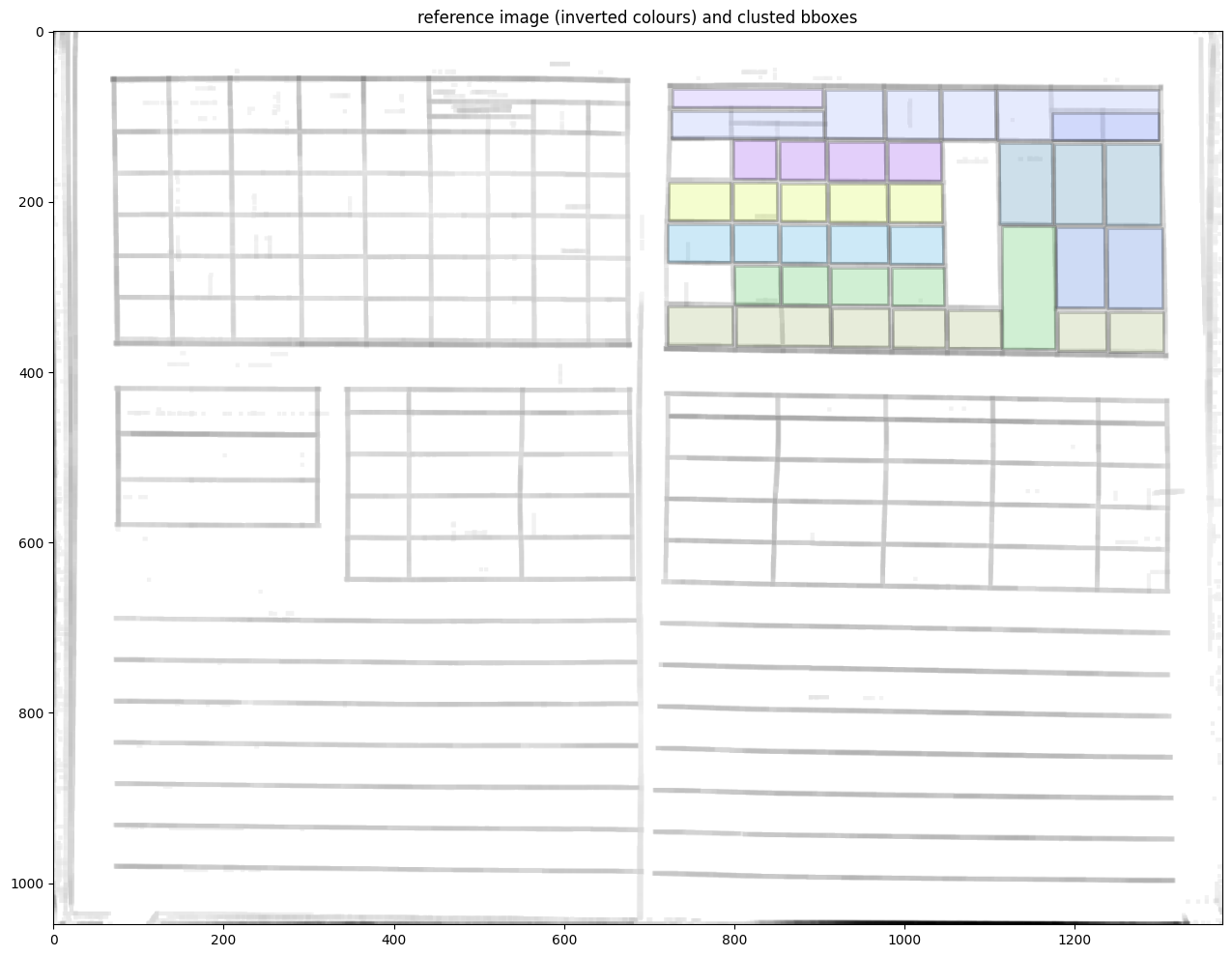

INFO 2024-06-02 22:02:28,921 - dawsonia.table_detect.opencv_contours - INFO - Dumped ('bboxes', 'column_labels', 'column_bboxes_idxs', 'row_labels', 'row_bboxes_idxs', 'original_image') into /home/a002487/Sources/ai-for-obs/dawsonia/docs/source/getting_started/get_table_structure_0a1a75fc-211b-11 ef-98fa-84c5a6cd0398.joblib. Explore it using get_table_strucutre_interpolation.ipynb

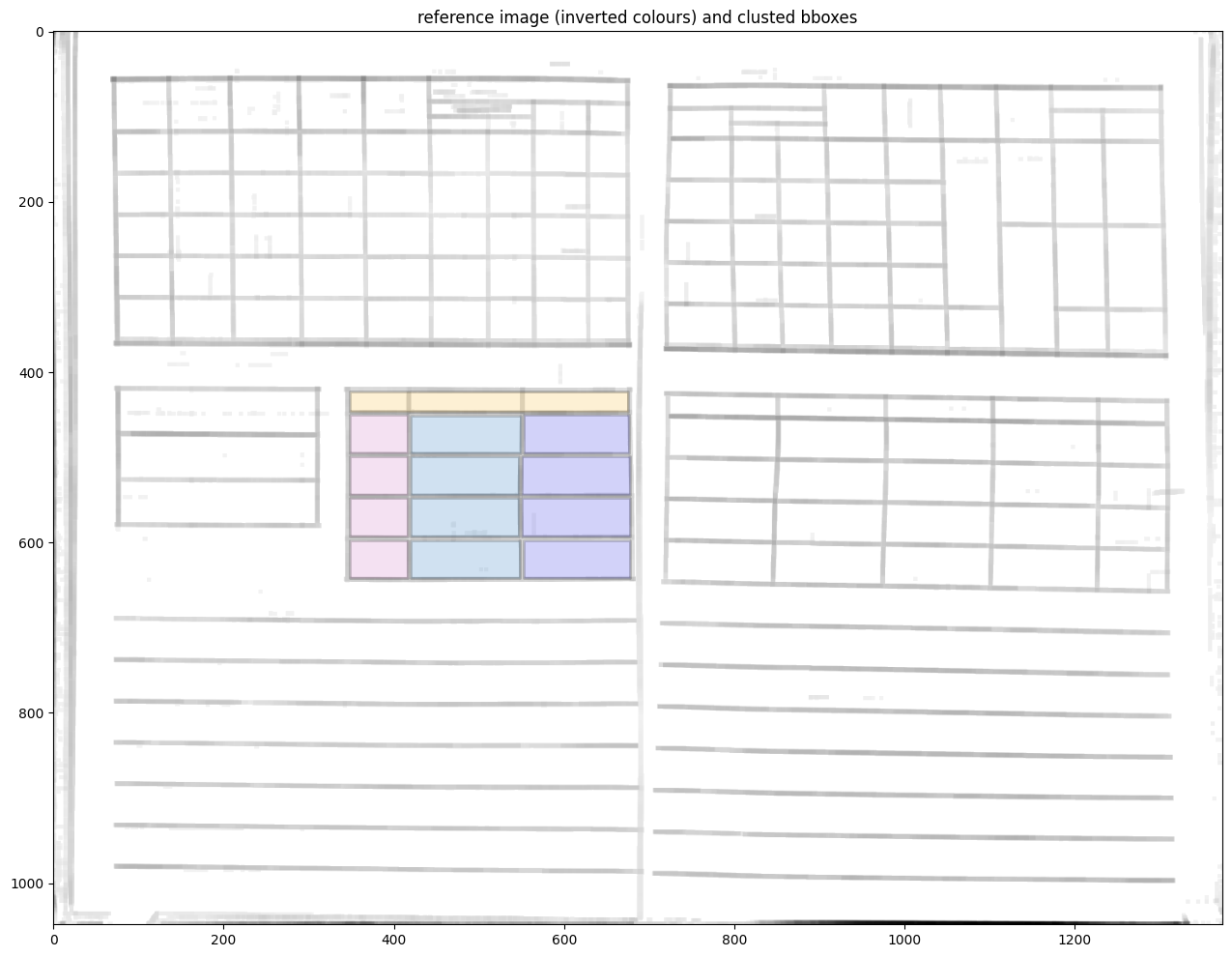

INFO 2024-06-02 22:02:28,955 - dawsonia.table_detect.opencv_contours - INFO - Finding contours for a mask with table_nb_pixels=46857
INFO 2024-06-02 22:02:30,577 - dawsonia.table_detect.opencv_contours - INFO - cluster labels = [2 3 1 0]
INFO 2024-06-02 22:02:31,400 - dawsonia.table_detect.opencv_contours - INFO - cluster labels = [4 0 2 1 3]
ERROR 2024-06-02 22:02:32,228 - dawsonia.table_detect.opencv_contours - ERROR - Error occured while attempting to curve fit with 3 data points. Defaulting to median value...
ERROR 2024-06-02 22:02:32,235 - dawsonia.table_detect.opencv_contours - ERROR - TypeError('The number of func parameters=4 must not exceed the number of data points=3')

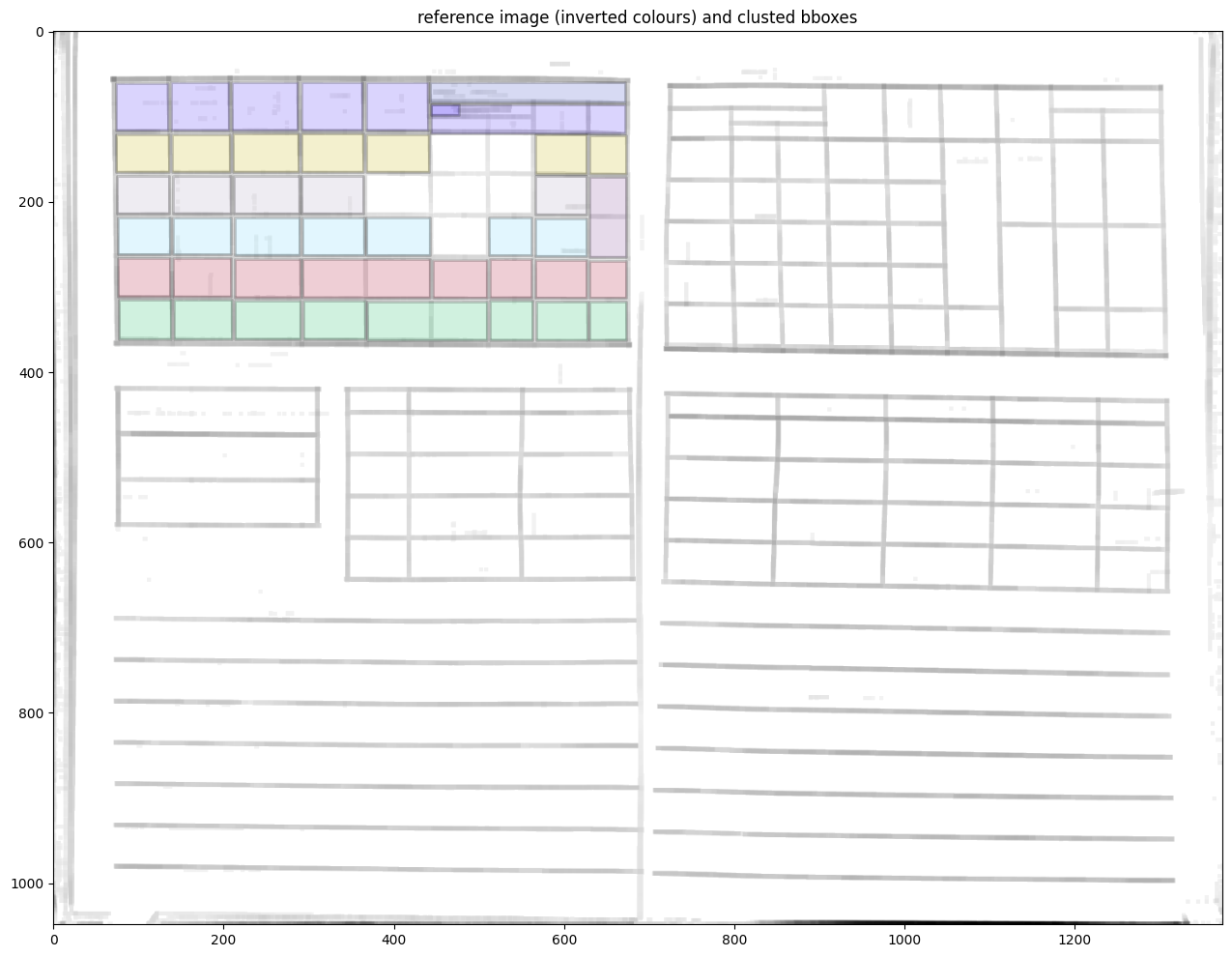

INFO 2024-06-02 22:02:32,249 - dawsonia.table_detect.opencv_contours - INFO - Dumped ('bboxes', 'column_labels', 'column_bboxes_idxs', 'row_labels', 'row_bboxes_idxs', 'original_image') into /home/a002487/Sources/ai-for-obs/dawsonia/docs/source/getting_started/get_table_structure_0c168e22-211b-11 ef-98fa-84c5a6cd0398.joblib. Explore it using get_table_strucutre_interpolation.ipynb

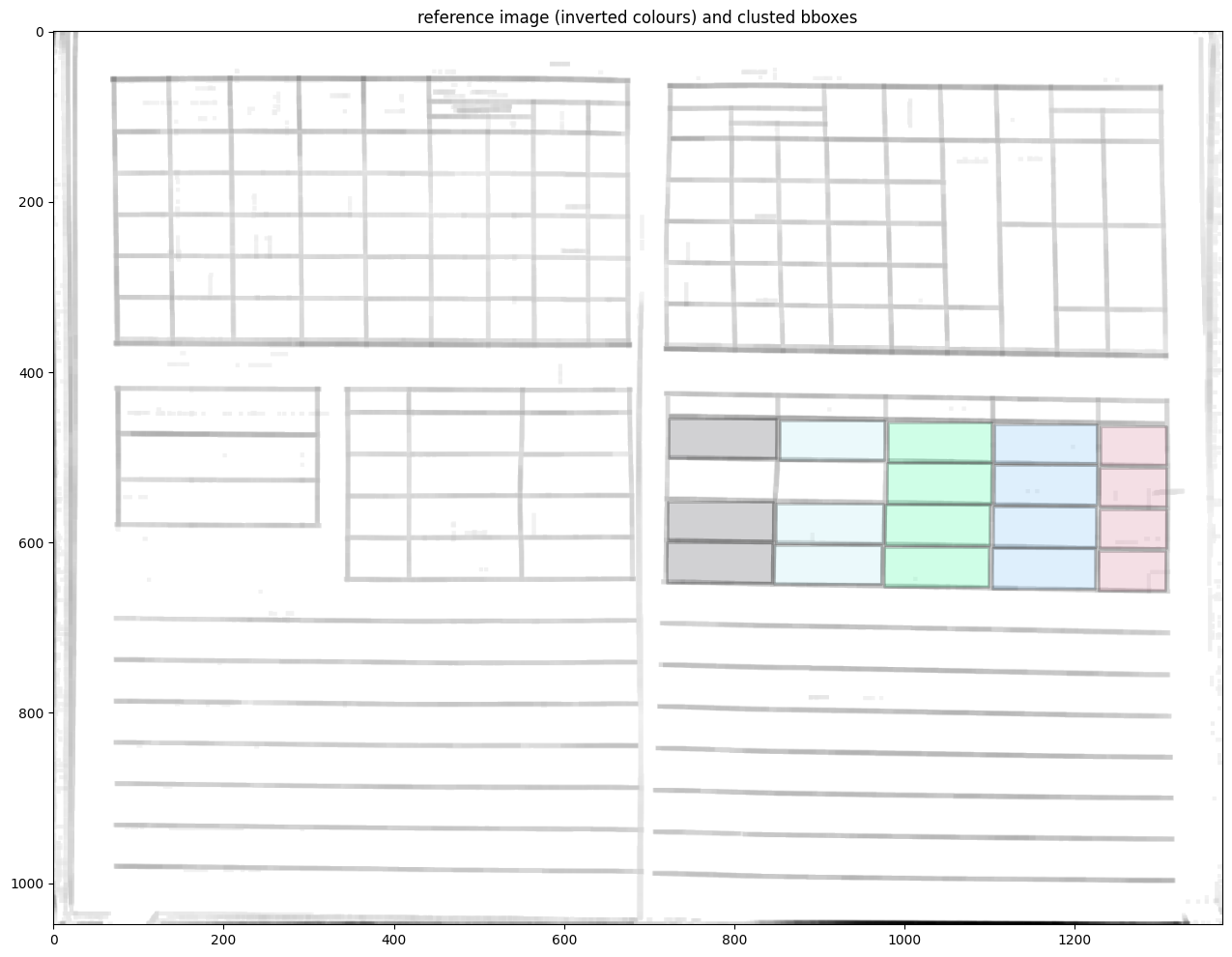

INFO 2024-06-02 22:02:32,272 - dawsonia.table_detect.opencv_contours - INFO - Finding contours for a mask with table_nb_pixels=49994
INFO 2024-06-02 22:02:33,575 - dawsonia.table_detect.opencv_contours - INFO - cluster labels = [2 0 1 3 4]
INFO 2024-06-02 22:02:34,751 - dawsonia.table_detect.opencv_contours - INFO - cluster labels = [1 3 2 0]
INFO 2024-06-02 22:02:35,810 - dawsonia.table_detect.opencv_contours - INFO - Dumped ('bboxes', 'column_labels', 'column_bboxes_idxs', 'row_labels', 'row_bboxes_idxs', 'original_image') into /home/a002487/Sources/ai-for-obs/dawsonia/docs/source/getting_started/get_table_structure_0e35f5c6-211b-11 ef-98fa-84c5a6cd0398.joblib. Explore it using get_table_strucutre_interpolation.ipynb
INFO 2024-06-02 22:02:35,895 - dawsonia.table_detect.opencv_contours - INFO - Finding contours for a mask with table_nb_pixels=21511
INFO 2024-06-02 22:02:35,909 - dawsonia.table_detect.opencv_contours - INFO - No bboxes detected!
INFO 2024-06-02 22:02:35,998 - dawsonia.table_detect.opencv_contours - INFO - Preproc: applying table_modif_rm_row_col
INFO 2024-06-02 22:02:36,003 - dawsonia.table_detect.utils - INFO - 🌧 no tables found
INFO 2024-06-02 22:02:36,015 - dawsonia.label - INFO - Table 0 not detected
INFO 2024-06-02 22:02:36,021 - dawsonia.label - INFO - Table 1 not detected
INFO 2024-06-02 22:02:36,027 - dawsonia.label - INFO - Table 2 not detected
INFO 2024-06-02 22:02:36,033 - dawsonia.label - INFO - Table 3 not detected
INFO 2024-06-02 22:02:36,039 - dawsonia.label - INFO - Table 4 not detected
